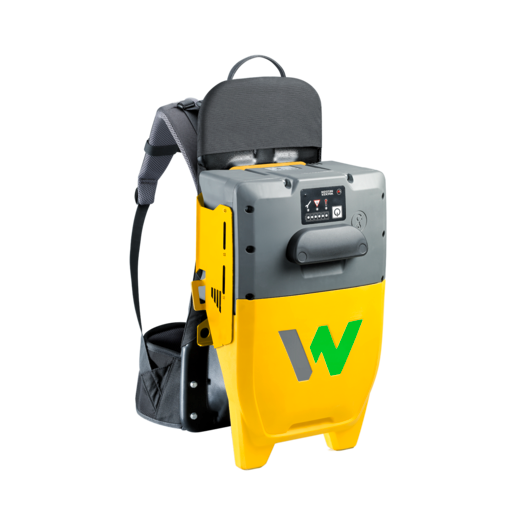

ACBe - Material number 5100050080

Backpack has integrated converter to provide high cycle/high frequency performance

• Fully adjustable backpack for varying size operators
• Lightweight fabric, padded shoulder straps and even weight distribution allow for extended working periods
• Vibrator connects to the bottom center of the backpack for easy left or right hand operation
• The operator is not exposed to heat, exhaust fumes and engine noise
• BP1000 battery is easy to install with no special tools
• Six combinations with various heads and shafts

The ACBe battery-powered backpack vibrator is a modular system with components sold separately:

• Item 5100025709: BP1000 lithium-ion battery (same battery used for the AS rammers and AP plates)
• Item 5100002543: C48/13 Quick Charger
• Item 5100049759: IEe38/34/1.5: 1.5 inch diameter head with 5 foot shaft
• Item 5100049830: IEe38/34/3: 1.5 inch diameter head with 10 foot shaft
• Item 5100049831: IEe45/34/1.5: 1.8 inch diameter head with 5 foot shaft
• Item 5100049832: IEc45/34/3: 1.8 inch diameter head with 10 foot shaft
• Item 5100049833: IEe58/34/1.5: 2.3 inch diameter head with 5 foot shaft
• Item 5100049834: IEe58/34/3: 2.3 inch diameter head with 10 foot shaft

Additional accessory items

• 5100051761: Integrated Battery Charger in a Transport Box
• 5100051760: Transport Box for BP1000 Battery
